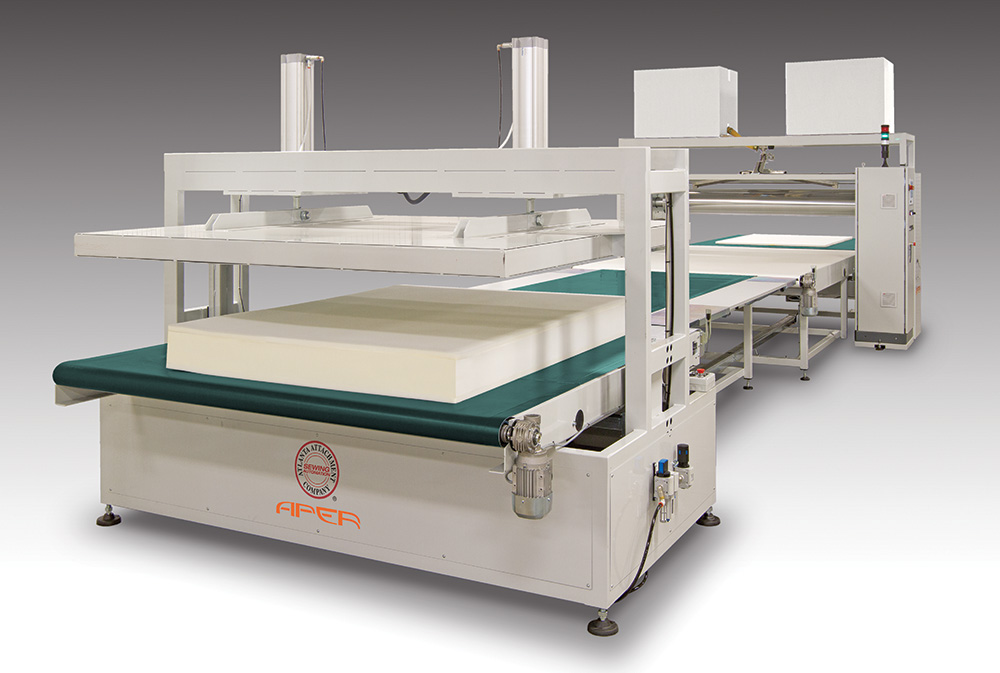

1967-AX-PR shown in-line with the model 1967-AX-R Roller Laminating Machine and model 1967-NTS Conveyor Belt. Protective grills not shown for illustrative purposes only.
-
- Balance Bar, 1967-AX-PR & PR2
-
- Contoured Mattress, 1967-AX-PR
Pneumatic Press System
The 1967-PR Pneumatic Press can work in-line with the model 1967-AX-R and 1967-AX-R+ Roller Laminating Machine to allow adhesive transfer between foam plates and the simultaneous activation of adhesive itself. The structure of the press was designed to exert approximately 3 tons of pressure. This allows for maximum pressure over slightly porous materials in order to achieve a perfect transfer of adhesive.
In addition, the model 1967-PR2 Servo Drive Press provides a needle lifting system that automatically aligns the foam plates before compression, even with multiple layers of foam.
- Easy to use
- Minimal operator input
Request
Download
Download| 1967-AX-PR | 1967-AX-PR2 | |
| Maximum press height (in) | 19.29 | |
| Voltage (v/ph/hz) | 400-480V 3PH 50-60HZ | |
| Motor type | AC | Brushless + AC |
| Current (amps) | 2 | 8.5 |
| Air pressure (psi) | 100/116 | 0 |
| Air consumption (cfm) | 6 | 0 |
| Weight (lbs) | 4400 | 4630 |
| Dimensions (w/l/h,inch) | 112 x 99 x 95 | 112 x 99 x 75 |
1967-NT – Conveyor Belt
1968-AX-PR2
Pneumatic Press with needle lifting system
Offers all the same benefits as the 1967-AX-PR but has a needle lifting system that automatically aligns the foam plates with minimal operator input.
Protective grills not shown for illustrative purposes only.
