Slitting and Splitting
Automatic Cut PU flexible foam, HR foam, CMHR foam, latex, visco-elastic foam, lightweight rebonds foam, melamine, Basotect®, EVA, PE
• High-friction conveyor table

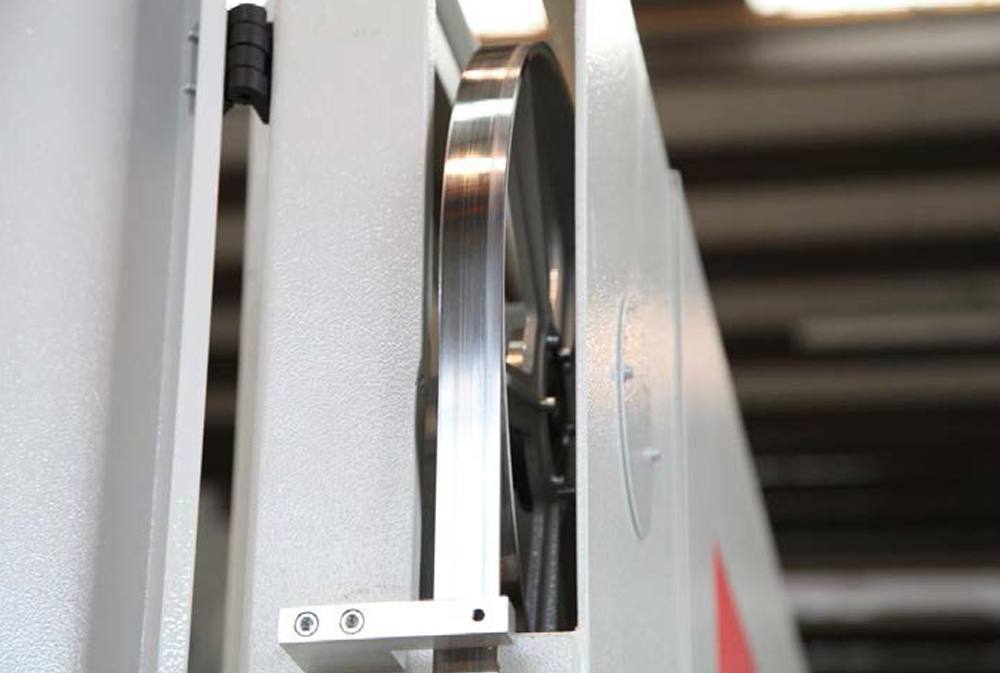

• Smooth circulating band knife
• Semi-automatic with dust vacuum

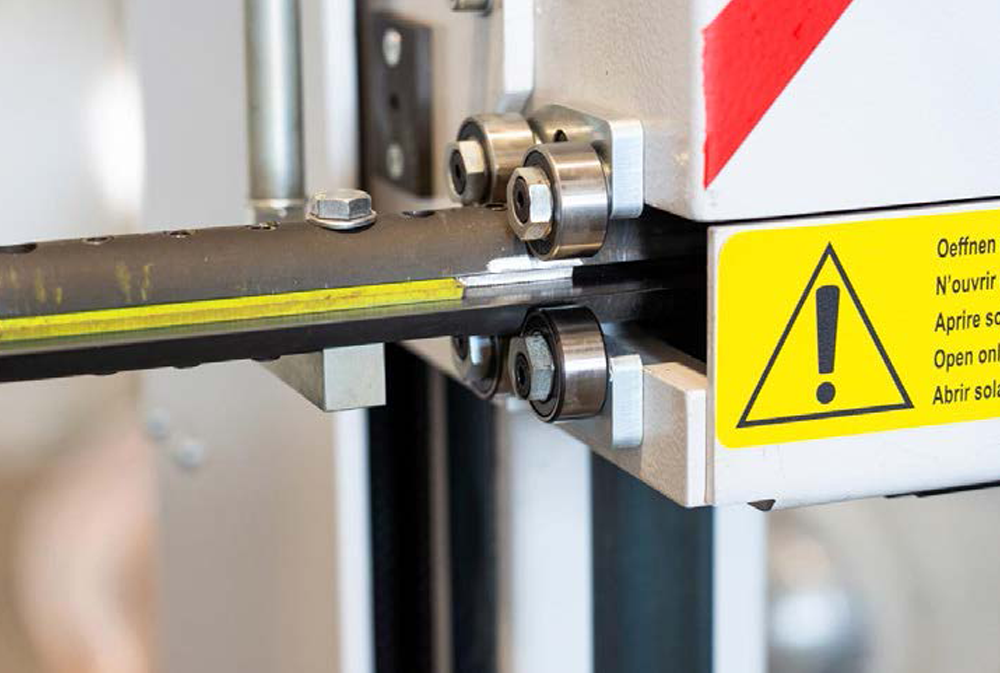

• Automatic tilting blade guide
• Take-away belt

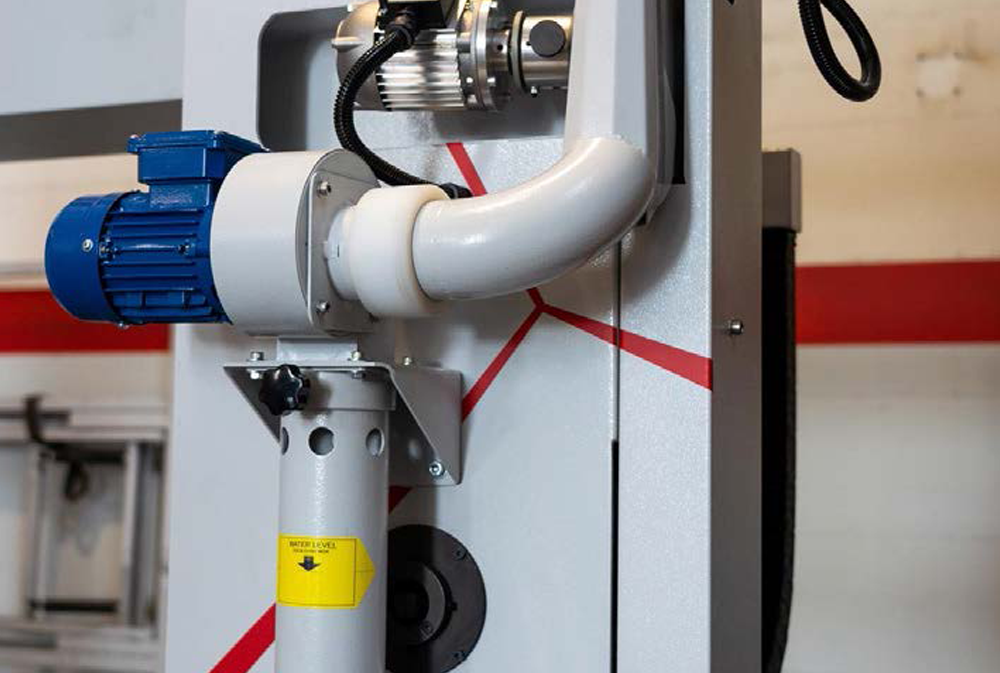

• Air blowing system for blade cleaning
• PLC with Hmi touchscreen 7”
• Manual blade tensioning system
Request
Download
Download| SPECIFICATIONS / ESPECIFICACIONES | STANDARD | HIGH CAPACITY | ||
| Cutting Height / Altura de Corte | 51″ (130cm) | 59″ (150cm) | ||
| Cutting Area / Area de Corte | 98″ x 91″ (250cm x 230cm) | |||
| Cutting Tool / Herramienta de corte | Smooth band knife / Cuchilla lisa | |||
| Cutting Speed / Velocidad de corte | 197ft/min (60m/min) | |||
| Air Pressure / Presión de aire | 80psi | |||
| Voltage / Voltaje | 400-230V 3PH 50/60Hz | |||
| Current (Amps) / Amperaje (amperios) | 40 | |||
| Shipping Weight / Peso de embarque | 10,500 lbs / (4750 kg) | |||
• 1385-LC – Loading conveyor
• 1385-UC – Unloading conveyor
• 1385-CS – Automatic cleaning system w/ silicon spray for horizontal systems
• Customizable cutting area
• 11385-HSC– Horizontal slitter w/ conveyorized table
• 11385-HSC-H – Horizontal slitter high capacity w/ conveyorized table

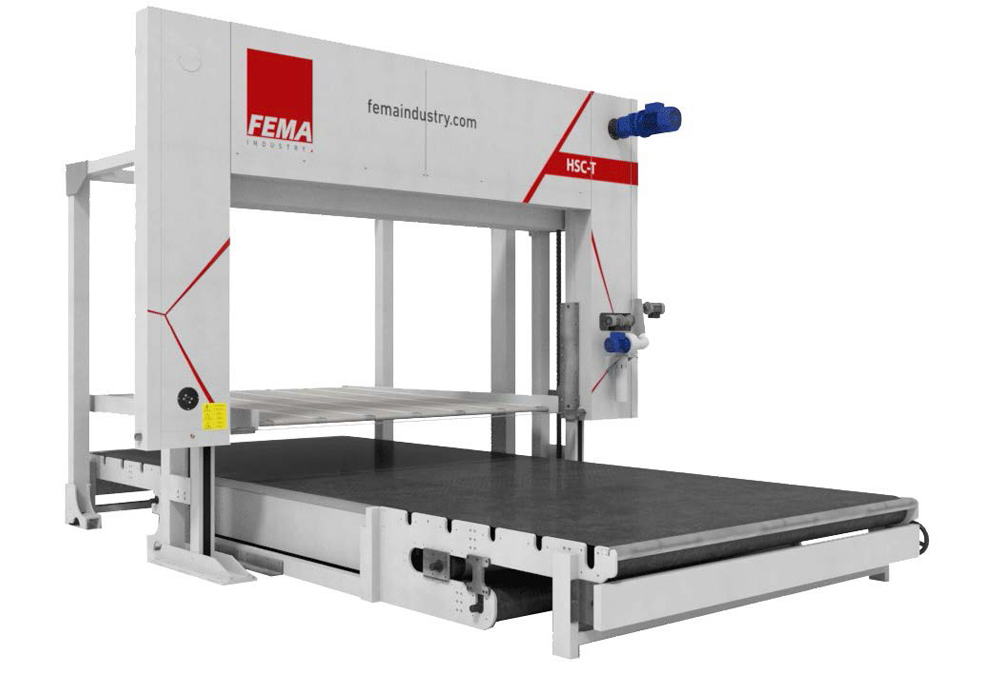

• 11385-HSC-T – Horizontal slitter w/ conveyorized table/take-away system
• 11385-HSC-TH – Horizontal slitter high capacity w/ conveyorized table/take-away system
