Class: 1366

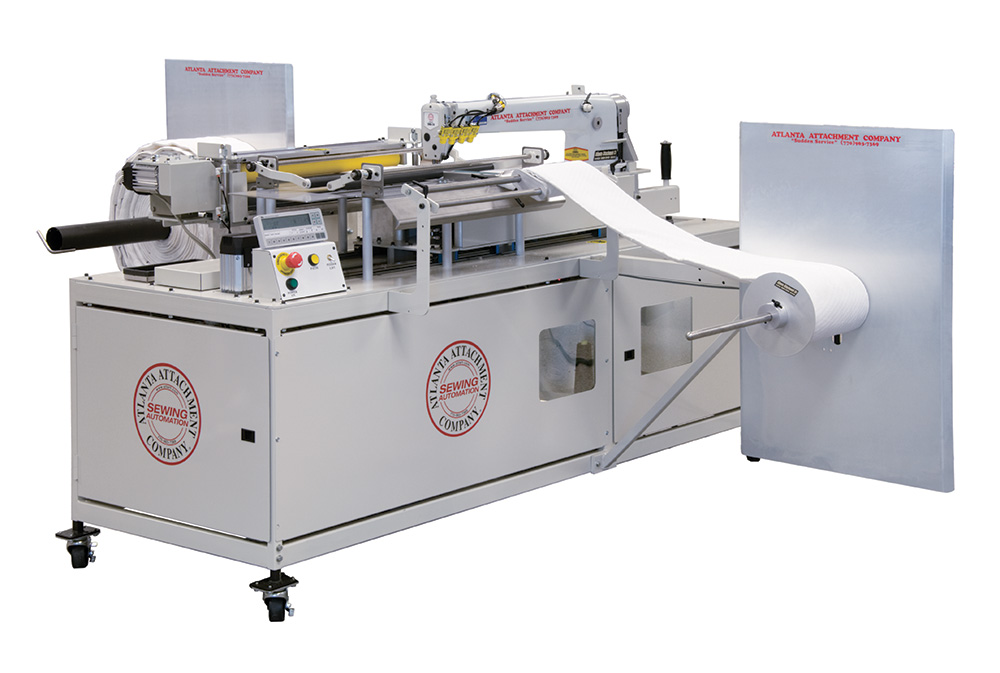

Automatic Vertical Stitch Machine

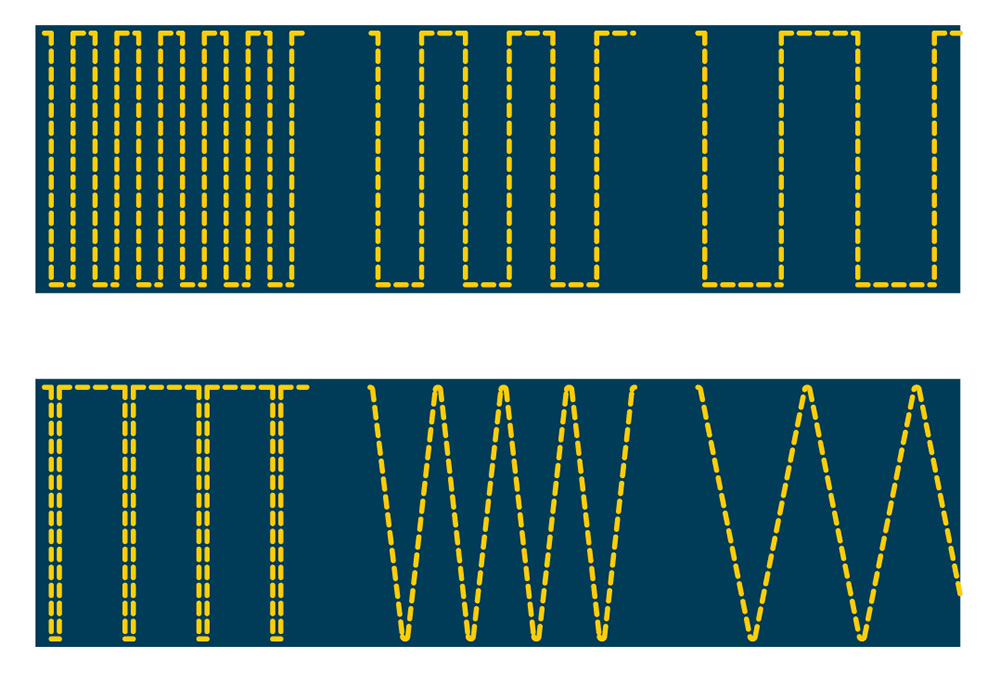

32 Programmable Patterns
Each pattern can have variations in seam margin and pattern width.
- Border widths up to 24″
- Servo-Motor drives (no cams)
- Custom programming for other unique patterns available
- Re-winder
- Auto stop for material depletion
- Head moves to ensure accurate seam
Request
Download
Download| SPECIFICATIONS ESPECIFICACIONES |
|
|---|---|
| Max sewing speed (rpm) | 3,000 |
| Factory preset speed (rpm) | 2600 |
| Max stitch length (spi) | 6 |
| Needle system | SNTVX7X140 |
| Needle size | 24 |
| Weight of material | Light / Medium |
| Voltage (v/ph/hz) | 220~240VAC 1PH |
| Current (amps) | 15 |
| Motor type | DC |
| Air pressure (psi) | 80 |
| Air consumption (cfm) | 5 |
| Shipping weight (lbs) | 1680 |
| Shipping dimensions (w/l/h, inch) | 96″ x 100″ x 60″ |
13-35 Queen borders per hour depending on pattern and width of border
• Close Station
• 1961 – Border Serger
• 1961-KIT6B – Triple Roll Holder

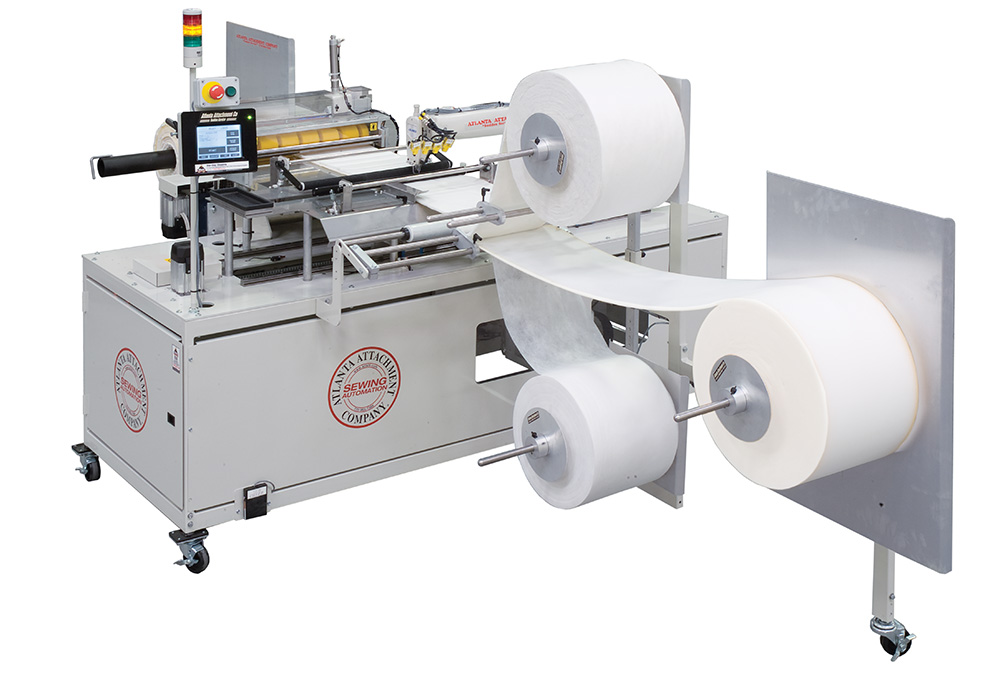

11366-18S – Auto Vertical Stitch Machine 18″ Max Width, Serial Bus, With Extended Juki 481 Sewing Head
11366-24S – Auto Vertical Stitch Machine 24” Max Width, Serial Bus, With Extended Juki 481 Sewing Head
11366-24 – Auto Vertical Stitch Machine 24″ Max Width, With Extended Juki 481 Sewing Head
