Class: 1353LF

Large Field Programmable Pattern Tacker for Furniture Production

  • Extra Large Sewing Field 78” x 40”

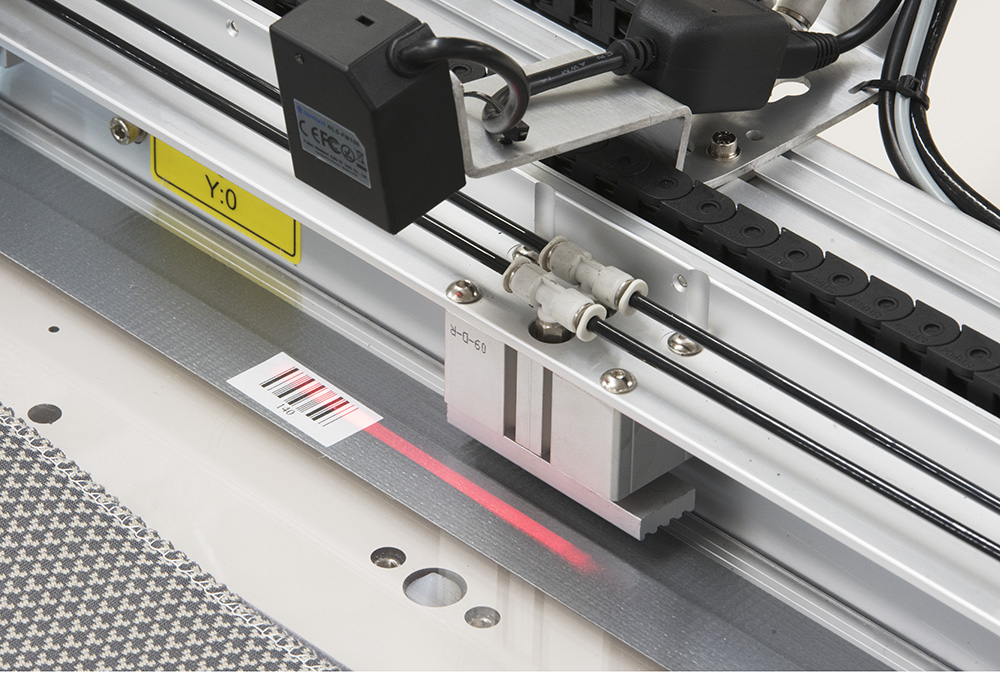

  • Tooling recognition (bar code) with automatic pattern selection

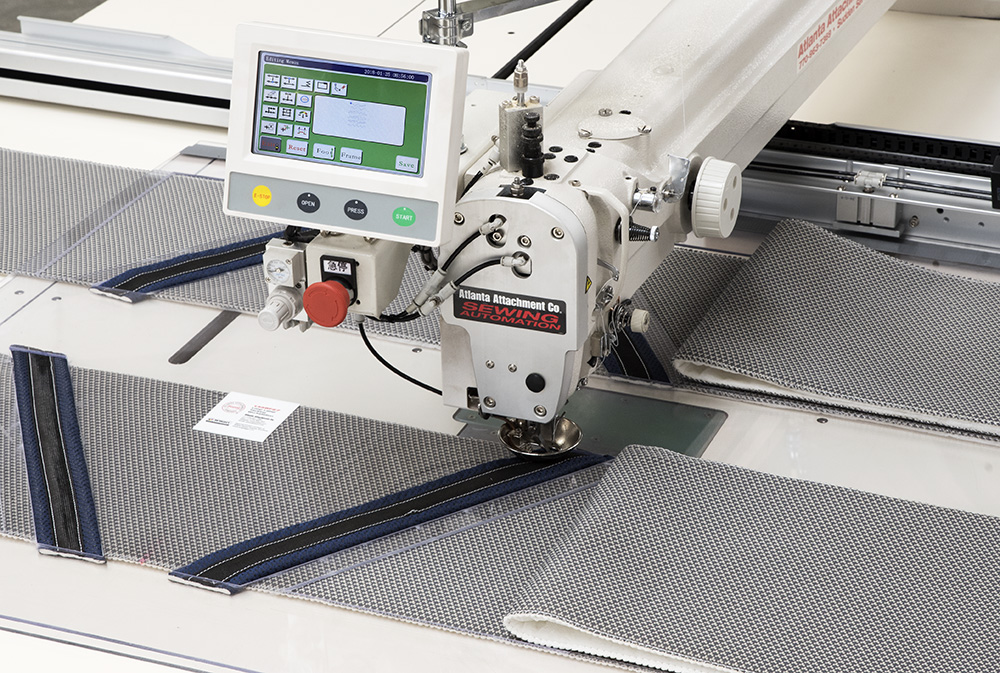

  • Touch Screen Operation
  • Can be programmed directly by way of the touchscreen on board the machine, but also through PC software which allows for greater detail control with expanded features and import options
  • Depending on tooling, labels or handles can be positioned on top of the border and sewn in place. In some cases, items such as labels can be sewn with the item below the border.
  • Maximum storage of 200 different patterns
  • Gear belt transmission of the sewing carriage for smooth, controlled, operation.
  • Quiet operation and simple maintenance.
  • Precision drive with AC Servo control for positioning accuracy

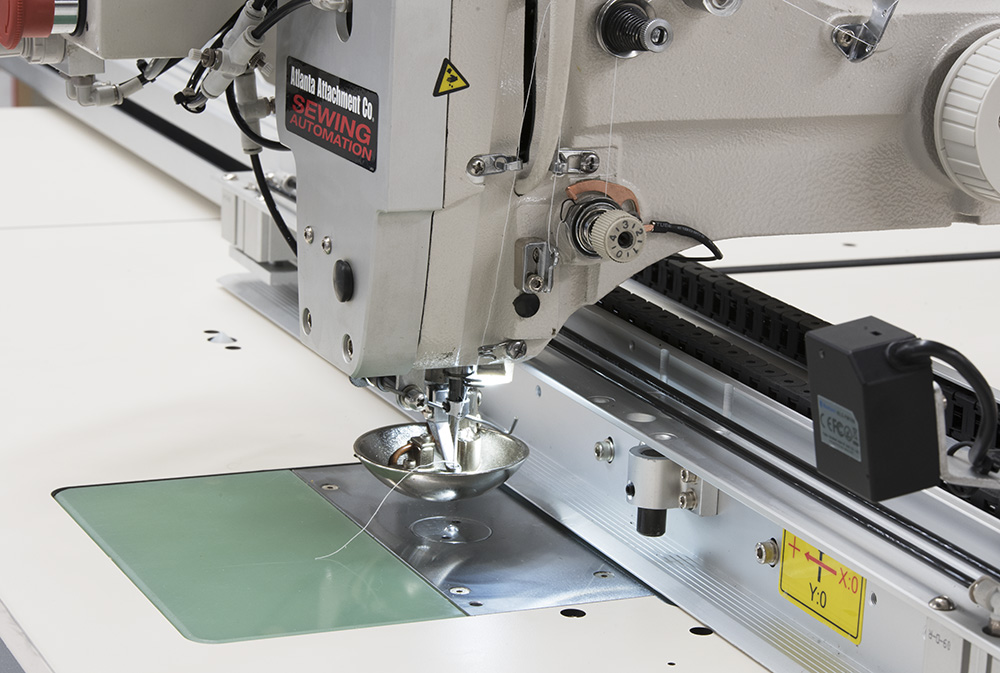

  • Heavy Duty Thread trimming system with Large Capacity bobbin
Download
Manual
from our library
Max sewing speed (rpm) 2,500
Factory preset speed (rpm) 1,800
Needle system SN135X1722
Needle size 22-130
Sewing field (cm) 200 x 100
Weight of material LIGHT / MEDIUM
Voltage (v/ph/hz) 220 1P 60HZ
Power (watts) 1,400
Motor type Servo
Air pressure (psi) 80
Air consumption (cfm) 1
Shipping weight (lbs) 1650
Shipping dimensions (w/l/h, inch) 55 x 102 x 55

100 – 400, Varies depending on pattern sewn – 8 hr

Single Needle 301 Lockstitch CNC Contour Control Underbed Thread Trimmer Automatic Presser Footlift Horizontal Hook, Transversal, Large Extended Head
  • Sewing head with integral Lift
  • Allows head to lift up and over potential obstacles
  • Automatic bobbin changer
  • Custom built tooling with programming supplied
  • Factory training in machine maintenance as well as sewing pattern design
