Images may include options

Class: 1337HEJC

Panel Flanger Workstation, 5mm GA, Direct Drive, Electronic Top Belt Feed

2-Year Warranty* 4500 RPM
Perfect Balanced Feeding Mechanism

• Direct Drive DC motor for Sewing head.
• Direct Drive step motor for belt feed
• Adjustable flanger guide
• 12 Preset push button feeding values
• Heavy-duty sewing head with high pressure oiling system and filter
• Swing out presser foot with sealed bearings reduces belt friction. No external lubrication required
• Sews heavyweight & lightweight panels
• Unrestricted operator visibility
• Easy threading
• Sews faster, quieter and smoother. We guarantee to require less maintenance and replacement parts than any other flanging machine

*Call or write for a copy of our warranty.

Max sewing speed (rpm) 4500
Factory preset speed (r pm) 3500
Max stitch length (spi) 5-6
Needle system SN135X5
Needle size 22/140
Needle distance (in) 5mm – 5mm
Weight of material LIGHT / MEDIUM / HEAVY
Voltage (v/ph/hz) 220V 1PH 60HZ
Current (amps) 5
Motor type EFKA DC
Air pressure (psi) 70
Air consumption (cfm) 6
Shipping weight (lbs) 600
Shipping dimensions (w/l/h, inch) 55 x 60 x 48

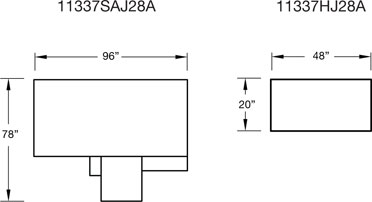

Footprint

90-110 Panels per hr.

Two Needles 401 Double Chainstitch 504 Three Thread Overlock Bottom Feed, Top Belt Feed Looper, Inline Edge Trimmer

1337154 Pneumatic flanging cutter
1337AT Single pneumatic flotation table
1337ATB Single air table, drop-down shelf
1335001 Triple pneumatic flotation table
1337022 Single air table extension, 18′
1337ATE – Air table double”
1337930 – Waste removal conveyor



11337HEJ24 – Panel Flanger Workstation, Mock Safety, 2.6mm GA, Direct Drive, Top Belt Feed

11337HEJ28C – Panel Flanger Workstation, 5mm GA, Direct Drive Electronic Top Belt Feed
